Heater control Cables - NON-A/C

[snomobeelr]

I can not find a picture or directions on how to connect the cables from the heater temp control to the Heater box. Does anyone have Pictures or instructions..   Thank You





[LS5]

unless someone else chimes in I have that exact same set up complete in my parts shed sitting on a bench and is all hooked up still. tomorrow after work I will head out in daylight and get some pics for you as to what goes where for each one if you would like ?

Darren

[snomobeelr]

That would be great.  Thank you very much

[LS5]

ok lets see if i can explain this...

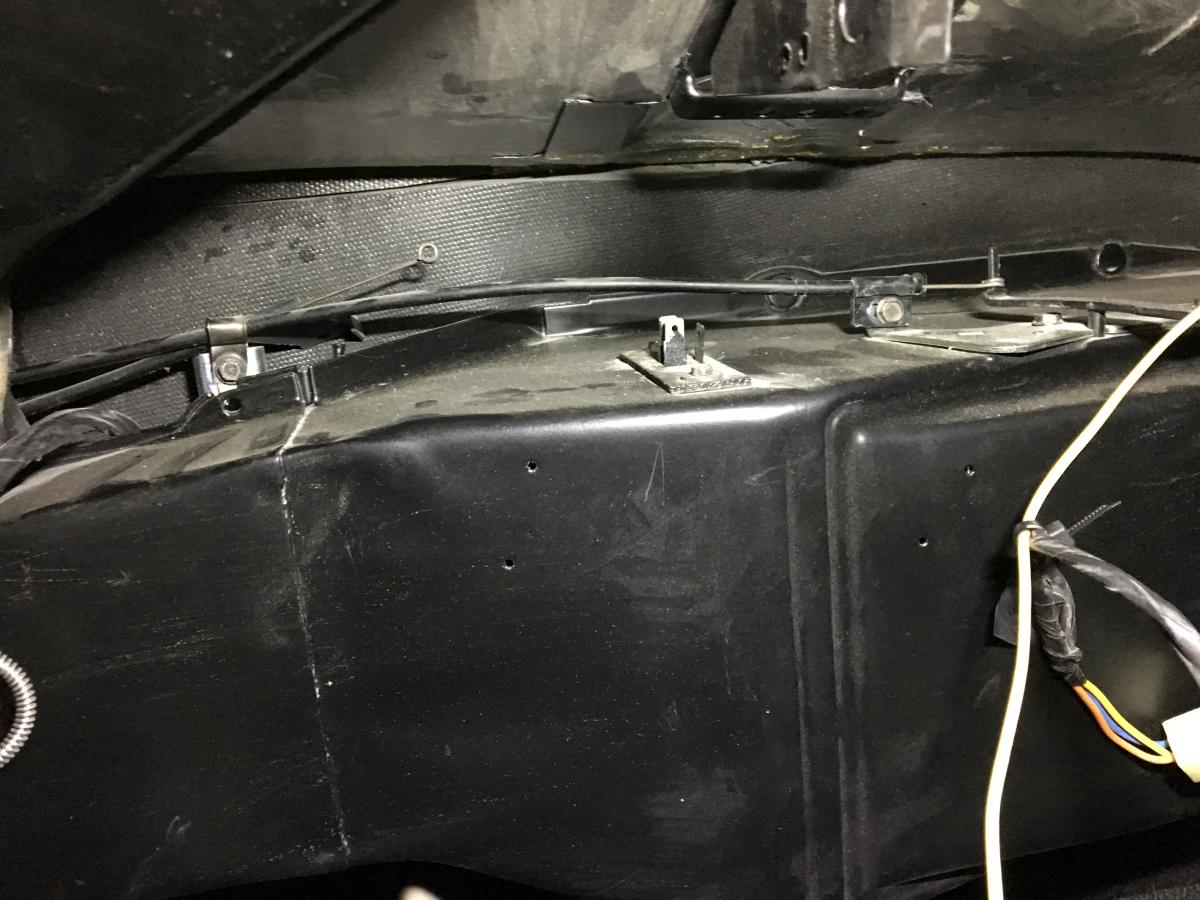

the bottom cable marked       off...............deice   that cable is the shortest and goes to the first pin on the left of the heater box in my picture where the box starts and is narrow

The middle cable marked     Cold..........Hot    that goes to the Top and furthest away pin at the end of the heater box on top as seen in your picture

The Top heater cable marked   Off............Air     Thats the middle pin and is tucked in behind the box and mid way from top to shortest. it cant be seen in your picture but if you look at your then mine you can roughly guess where she is going to be by feel if you dont remove your box and feel from between the firewall and heater box.







Darren

[snomobeelr]

Darren, I am thinking my heater box may be messed up, I missing that middle pin and is tucked in behind the box .  I pulled the dash back out will look at it tomorrow or friday..



Thanks again ,  Alan
